Critical Parts

*The detail specification and application data sheet can be downloaded from the Database.

Integrated Circuits, SOI-ASIC, CMOS, Monolithic Silicon    Technology:       0.15um CMOS/Fully-depleted SOI process, 6-layer wiring Radiation hardness:     SEU resistance: LETth >64[MeV/(mg/cm2)]     SEL resistance: SEL free     TID resistance: 1000[Gy(Si)] Maximum number of cells: 5.6M cell Gate delay time:     43psec (Normal type)     33psec (High speed type) Gate power dissipation :     0.0148pW/MHz (Normal type)     0.0150pW/MHz (High speed type) Maximum operating frequency:     1265MHz (Normal type)     1703MHz (High speed type) RHBD memory: 50 to 100MHz、72kbit as a maximum IO: CMOS level, Stagger Package: 304 lead CQFP Certified on November 12, 2010   Detail Specification : JAXA-QTS-2010/103   Application Data Sheet : JAXA-ADS-2010/103

64-bit MPU (HR5000S)   User's Manual Technology: 0.15um CMOS/Fully-depleted SOI process MPU core:   MIPS64-5kf Maximum operating frequency: 50MHz Built-in peripheral functions:   Memory controller, PCI, UART, DMA, Timer and interrupt controller Package: 304 lead CQFP Power dissipation: About 0.5W at 50MHz Radiation hardness:   SEU: LETth>64.0[MeV/(mg/cm2)]   SEL resistance: SEL free   TID resistance: 1000[Gy(Si)] Certified on November 12, 2010   Detail Specification : JAXA-QTS-2010/103   Application Data Sheet : JAXA-ADS-2010/103

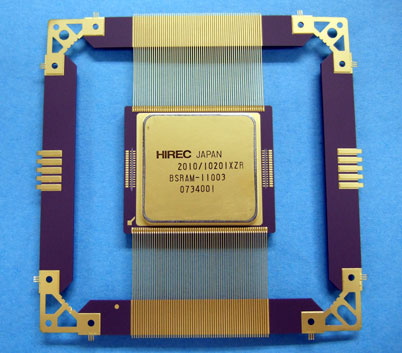

INTEGRATED CIRCUITS,36M-BIT BURST SRAM,CMOS,MULTICHIP SILICON      User's Manual rev.1.1 Maximum memory capacity:36Mbit Minimum memory capacity:20Mbit Maximum 100MHz operation (synchronous) Transfers consecutive 4-words of data all at one time Power consumption about 3W Certified on March 28, 2008   Detail Specification : JAXA-QTS-2010/201   Application Data Sheet : JAXA-ADS-2010/201

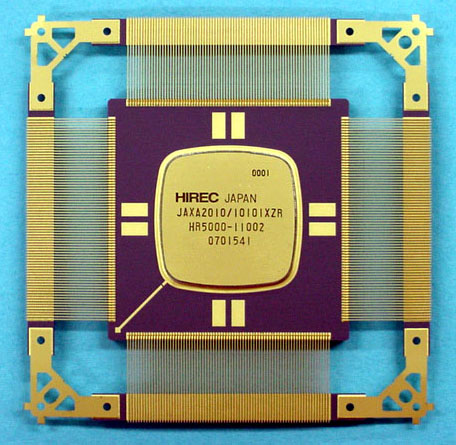

INTERGRATED CIRCUITS, 320MIPS 64-BIT MPU, CMOS, MONOLITHIC SILICON   User's Manual   Radiation Test Report    MIPS64 5kf architecture 200MHz operation (320MIPS) Power consumption About 4W at 200MHz Built-in 64-bit floating point unit 32kB (inst.) + 32kB (data) cache On-chip peripheral circuit 66MHz PCI Version 2.2 Memory controller with EDAC (8 banks) 16550 compatible UART (2 channels) Timer (2 channels) DMA controller (2 channels) Certified on March 8, 2007   Detail Specification : JAXA-QTS-2010/101   Application Data Sheet : JAXA-ADS-2010/101

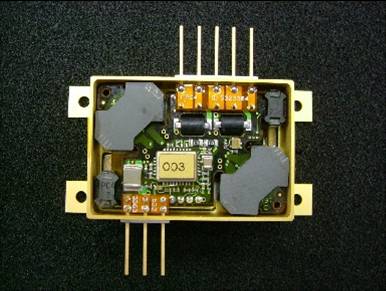

DC/DC CONVERTER (50V input/ ±15V output)   Datasheet 50V unregulated bus, Basic model: +15/-15V, 40W High efficiency (87% typical) Improved reliability by using no magnet wires for     transformers 58mm(W) x 40mm(D) x 17mm(H) (excl. flange), 150g Certified on June 9, 2007   Detail Specification : JAXA-QTS-2020/0005   Application Data Sheet : JAXA-ADS-2020/0005

POL DC/DC CONVERTER (5V Input/ 1.2V to 3.3V Output)  Trench MOSFET Electrical specifications  Application note Non-isolated synchronous step-down buck converter Built-in Overcurrent protection/Soft start function/External     ON/OFF control Efficiency 90% as a minimum (5V input, 3.3V output) Dimensions:15mm(W) x 19mm(D) x 6mm(H), Mass:7.2g Max. Certified on January 17, 2011   Detail Specification : JAXA-QTS-2020/0101   Application Data Sheet : JAXA-ADS-2020/0101

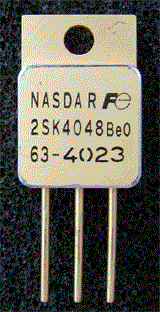

POWER MOSFET, N-CHANNEL     Product Lineup Package: TO-254, SMD Rated voltage: 100V, 130V, 200V, 250V and 500V LETth* >38MeV/(mg/cm2)     *Average LET in the device Low on-resistance Certified on March 31, 2008   Detail specification Applicaation data sheet 100 to 250V type (TO-254) JAXA-QTS-2030/101A JAXA-ADS-2030/101A 100 to 250V type (SMD) JAXA-QTS-2030/102 JAXA-ADS-2030/102 500V type JAXA-QTS-2030/103 JAXA-ADS-2030/103

POWER MOSFET, P-CHANNEL     Product Lineup Package:TO-254, SMD Rated voltage:-100V, -200V 100V  LET:39MeV(mg/cm2)      200V  LET:40MeV(mg/cm2) **Average LET in the device Certified on June 21, 2011   Detail specification:JAXA-QTS-2030/104    Application data sheet:JXA-ADS-2030/104
